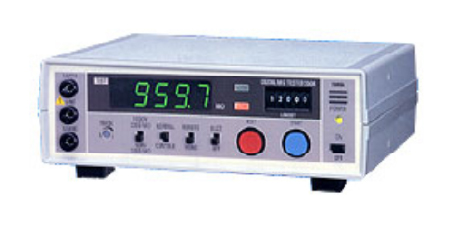

MODEL:356A
■ Range: 500VDC,2000MΩor 1000VDC,2000MΩ
■ Digital switch for Low setting
■ Escutcheon for panel installation
■ Remote start terminal, Reset terminal incorporated
| Model & Output | 356A , Low alarm |
| Measurement ranges | 500V DC, 2000MΩ or 1000V DC, 2000MΩ |
| Rated measurement current | 1 mA |
| Judgment system | Low limit with digital comparator |
| Adjustable range | Low limit 0-1999MΩ |
| Judgment condition | Display value > Low limit value : Good |
| Sampling | 10 times/sec. |
| Response (Indication) | approx. 1.2 kg |
| Mask time | 0.1 - 10sec. |
| Power supply | 100 / 200V AC, 50/60HZ |
| Weight | Approx. 1 kg |
| Dimensions | 206 (W) x 81 (H) x 179 (D) mm |
| Accessories | Power fuse(1), Power cord(1) |
