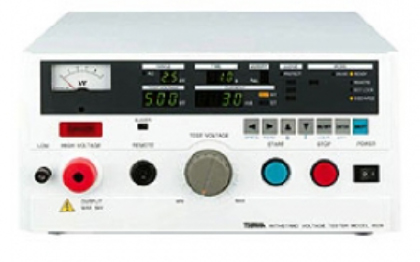

MODEL:8528
■ For a wide requirement of Safety regulation test up to 5KV
- Safety design of interlock function, key lock function etc.
- Test conditions and test result can be output with RS-232C
- Status output to output the test conditions or judgement result
- With remote control I/O to cope with remote control
- Panoramic display of test conditions, measured value etc. with large LED
■ Light and compact
| Model & Output | 8528: RS-232C and 0 to 5V DC |
| Measurement voltage | AC 0 to 2.5KV, 0 to 5.0KV, 2 ranges |
| voltage output system | Zero-cross throw switch |
| Setting of voltage | Manual setting by volt slider |
| Accuracy of Voltage | ± 1.5 % of F.S. |
| Measurement current | From 0.01mA to 110.0mA |
| Accuracy of current | ± ( 5 % + 20 μA ) for high setting value |
| Setting time | 0.5 to 999 s (with timer OFF function) |
| judgement of test result | High & low limit |
| Power supply | 90 to 110V AC, 50/60HZ (Available 115/200/220/240 V) |
| Weight | Approx. 15 kg (20.5kg for optional power supply) |
| Dimensions | 320 (W) x 150 (H) x 330 (D) mm |
| Accessories | 2m High-voltage cable(1), 3m Earth wire(1), 2.5m Power cord(1), Remote I/O plug(1), Fuse(1) |
