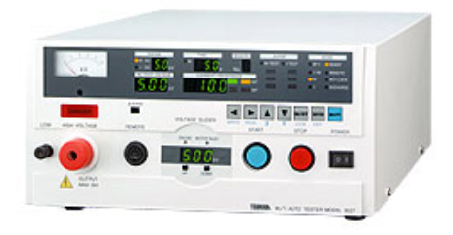

MODEL:8527
■ For a wide requirement of Safety regulation test up to 5KV
- Test voltage of withstanding voltage test is remotely
settable (motor drive system)
- Test conditions and test result can be output with
RS-232C
Safety design of interlock function, key lock function etc.
Status output
Remote I/O
■Light and compact
| Model & Output | 8527: RS-232C and 0 to 5V DC |
| Measurement voltage | AC 0 to 5.0KV |
| Accuracy of voltage | ±1.5 % of F.S. |
| Measurement current | From 0.01mA to 199.9mA, 2 ranges |
| Accuracy of current | ± (5 % + 20µA) for high setting value |
| Setting time | 0.5 to 999 s (with timer OFF function) |
| Measuring insulation | DC500V and 1000V, 2 ranges (Available 25/50/100/250 V) |
| Accuracy of insulation | ±2 % of rdg. +3 digit at 0 to 200.0 M-ohm ±5 % of rdg. +3 digit at 180 to 2000 M-ohm |
| Setting time | 0.5 to 999 s (with timer OFF function, Min. mask time +0.2s) |
| Mask time | 0.3 to 50.0s (Max. test time –0.2s) |
| Accuracy of mask time | ±20ms up to 99.9s, ±200ms up to 999s |
| Power supply | 90 to 110V AC, 50/60HZ (Available 115/200/220/240 V) |
| Weight | Approx. 19 kg (24.5kg for optional power supply) |
| Dimensions | 320 (W) x 150 (H) x 430 (D) mm |
| Accessories | 2m High-voltage cable(1), 3m Earth wire(1), 2.5m Power cord(1), Remote I/O plug(1), Fuse(1) |
