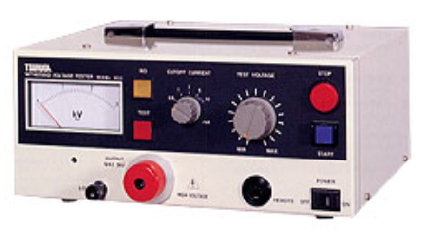

Withstand Voltage Tester
MODEL:8522
- Compact and light weight portable type
- Test Voltage 0~3kV AC, output capacity 30VA (3kV,10mA)
| Model | 8522 |
| Measurement voltage | AC 0 to 3.0KV |
| voltage output system | Zero-cross throw switch |
| setting of voltage | Manual setting by volt slider |
| Accuracy of voltage | ±1.5% of F.S. |
| Adjustable range | 0.5 / 1 / 2 / 5 / 10 mA |
| Accuracy of current | ±( 5 % + 0.1mA ) |
| Setting time | 0.5 sec. to 30min. |
| Judgement of test result | High limit |
| Power supply | 90 to 110V AC, 50/60HZ |
| Weight | Approx. 5.5kg |
| Dimensions | 260 (W) x 110 (H) x 220 (D) mm |
| Accessories | 2m High-voltage cable(1), 3m Earth wire(1), 2.5m Power cord(1), 5P-DIN plug(1), Fuse(1) |
