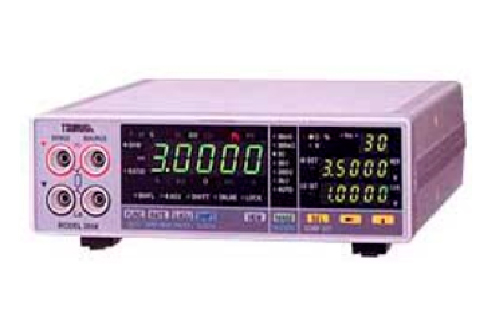

제품소개
특징
- 판정 값, 시험 조건, 시험 결과를 한눈에 볼 수 있도록 전면부 표시
- 저항 범위 30mΩ / 300mΩ / 3mΩ 측정 주파수 10kHz
- 이차전지, 연료 전지의 셀 저항과 셀 전압을 측정
- 아날로그 출력 표준 장비
- BCD, RS-232C 등 다양한 방식의 데이터 출력 제공
- 측정 주파수 1kHz의 저 저항 측정기도 준비(MODEL : 3566)
| Model & Name | 356E : Standard, with analog output 356E-01 : with GP-IB 356E-03 : with BCD output (TTL Level) 356E-04 : with BCD output (open collector) 356E-05 : with RS-232C 356E-06 : with RS-485 |
| Resistance range | 30 mOHM, 300mOHM, and 3OHM |
| Voltage range | DC 5V and DC 50V |
| Accuracy (representative) | Resistance : ±(1.0% of rdg. + 15digit) Voltage : ±(0.05% of rdg. + 5digit) |
| Frequency | AC 10kHz ±200Hz |
| Measuring Current | 7.4mA (for 30 mOHM), 1mA(for 300mOHM), 100μA (for 30OHM) |
| Allowable applived voltage | DC60V for all range |
| Sampling rate and Response speed | SLOW mode : 1.56 time/sec. 1.92s for 50Hz 1.88 time/sec. 1.60s for 60Hz MEDIUM mode: 6.25 time/sec. 800ms for 50Hz 7.52 time/sec. 667ms for 60Hz FAST mode: 50 time/sec. 100ms for 50Hz 60 time/sec. 84ms for 60Hz |
| Measurement method | AC Four(4) terminal system |
| Power supply | AC100 to 240V 50/60Hz |
| Weight | Approx. 1 kg |
| Dimensions | 206 (W) x 65 (H) x 169 (D) mm |
