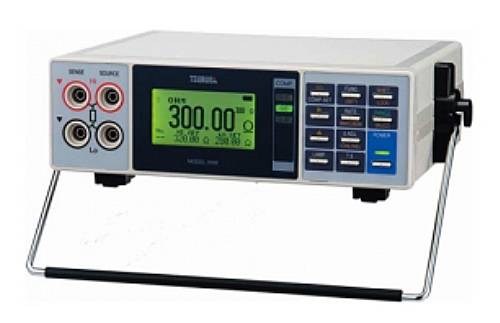

제품소개
특징
- 배터리와 AC 어댑터의 2전원 방식
- 도선 저항에 영향을 받지 않는 직류 4단자 법을 채용
- 온도 측정 가능, 온도 환산 / 온도 보정 기능 첨부
- 프린터 I/F, BCD, RS-232C 데이터 전송기능 추가 준비중
- 메모리 보드 장착 가능
- 본체 1kg의 경량, 운반 핸들 부착
- Six ranges from 300m-ohm to 30k-ohm
- 4-terminal method minimizes lead wire’s resistance
- AC or battery pack power supply
- Light weight: only 1 kg
| Model & Output | 3568 : No data output 3568-03 : BCD output, TTL level 3568-04 : BCD output, Open collector 3568-05 : RS-232C |
| Measurement ranges | 300m-ohm, 3, 30, 300, 3k and 30k-ohm, 6ranges |
| Accuracy | Resistance measurement: ±(0.08% of rdg. + 3digit) typ. Temperature measurement: ±(0.2% of rdg. + 0.2°) |
| Measurement current | From DC 100mA to 10μA |
| Max. Applied voltage | 100V, AC, DC, for all ranges (10V DC at temperature measuring range) |
| Sampling time | 4/sec. (SLOW mode) 20/sec. (FAST mode) |
| Response speed | 500msec. (SLOW mode) 100msec. (FAST mode) |
| Measurement method | 4-terminal method (resistance measurement) |
| Temperature measuring range | Pt 100 ohm : from -19.9 to 199.9 degree C |
| Power supply | LR6 (AA) Alkaline batteries × 6, AC adaptor (100/ 200V +/- 10%) |
| Weight | Approx. 1 kg |
| Dimensions | 206 (W) x 65 (H) x 169 (D) mm |
