제품소개
특징
- 저항 측정 30mΩ 에서 30kΩ6 레인지, 교류 4단자법 측정
- 이차 전지, 원료 전지의 셀 저항과 셀 전압을 측정
- 샘플링주기는 60회/초, 84ms의 고속 응답
- 30패턴 비교기 메모리 기능 첨부
- 측정 주파수 10kHz의 저저항측정기도 준비 (MODEL : 356E)
- 다 채널 저항 측정기도 준비 (MODEL : 356M)

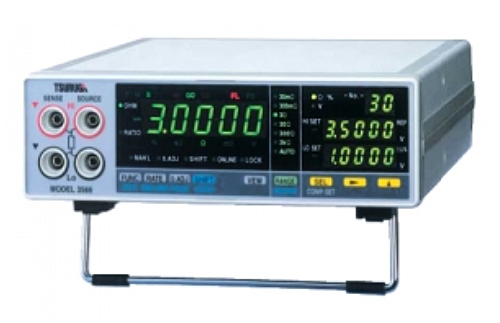

쓰루가 저저항측정기
Battery inspection for measurement and comparison of battery internal resistance and open-circuit voltage
- One body with Six ranges from 30m-ohm to 3K-ohm
- Fast sample rate and speed: 60 counts/sec. 84ms
- Available 10KHZ low-resistance meter for fuel cell (Model 356E)
Typical Application
Internal resistance of Battery(Fuel Cell) , Contact resistance
| Model & Output | 3566-01: GP-IB interface 3566-03: BCD output, TTL level 3566-04: BCD output, Open collector 3566-05: RS-232C 3566-06: RS-485 |
| Measurement ranges | 30 m-ohm, 300m-ohm, 3, 30, 300, and 3K-ohm, 6 ranges |
| Accuracy | ±0.5 % of rdg. +8 digit at SLOW sampling mode ±0.5 % of rdg. +11 digit at MEDIUM sampling mode ±0.5 % of rdg. +6 digit at FAST sampling mode |
| Measuring frequency | AC1kHz±0.2Hz |
| Measurement current | From 7.4 mA to 1.5 µA |
| Max. Applied voltage | 60V DC for all ranges |
| Sampling time | 50/sec at 50HZ, 60/sec. at 60HZ (FAST mode) 6.25/sec at 50HZ, 7.52/sec. at 60HZ (MEDIUM mode) 1.56/sec. at 50HZ, 1.88/sec. at 60HZ (SLOW mode) |
| Response speed | 100ms at 50HZ, 84ms at 60HZ (FAST mode) 800ms at 50HZ, 667ms at 60HZ (MEDIUM mode) 1.92s at 50HZ, 1.60ms at 60HZ (SLOW mode) |
| Measurement method | Four-terminal measurement |
| Power supply | 100 to 240V AC, 50/60HZ |
| Weight | Approx. 1 kg |
| Dimensions | 206 (W) x 65 (H) x 200 (D) mm |
| Accessories | Power fuse(1), Power cord(1), Input connector (1) |
Response speed 100ms at 50HZ, 84ms at 60HZ (FAST mode) 800ms at 50HZ, 667ms at 60HZ (MEDIUM mode) 1.92s at 50HZ, 1.60ms at 60HZ (SLOW mode) Measurement method Four-terminal measurement Power supply 100 to 240V AC, 50/60HZ Weight Approx. 1 kg Dimensions 206 (W) x 65 (H) x 200 (D) mm Accessories Power fuse(1), Power cord(1), Input connector (1) Optional Accessories probe :5811-23A Kelvin clip :5811-21
