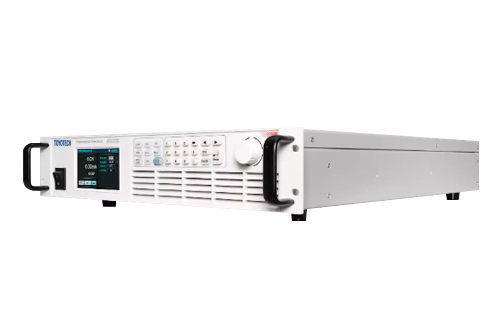

The N32100 series is a high-performance, high-voltage programmable DC power supply featuring a wide-range high-voltage output capability with a maximum output voltage of 10kV. Even at low-voltage outputs, the product maintains high precision and low ripple, supporting testing applications for a wide range of device specifications. With a rapid response and a voltage rise time ≤25ms, the N32100 series fully meets the demands of high-speed voltage establishment testing. Regarding safety design, the entire series comes standard with safety interlock functionality, ensuring safe and reliable operation throughout use and fully safeguarding user safety.

Main Features

Voltage Specifications: 3kV/4kV/5kV/6kV/8kV/10kV
Current Range: 0~1A
Power Specifications: 1kW/2.5kW
Wide output range, one unit replaces multiple power supplies
High-speed dynamic response, voltage rise time ≤25ms
Voltage Accuracy: 0.05% + 0.05% F.S.
Adjustable voltage and current slope to accommodate varying load requirements
CC&CV priority selection function for compatibility with diverse test objects
Standard features include SEQ test, Sweep mode, low-voltage output mode, etc.

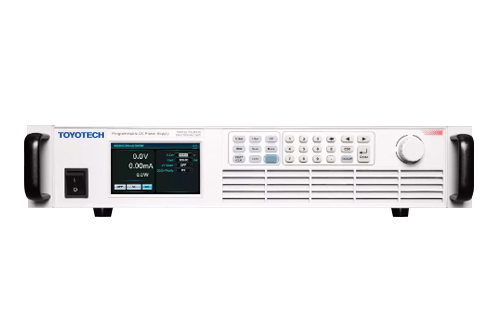

19-inch standard chassis design suitable for desktop and rack mounting
Large high-definition LCD display for clearer test information

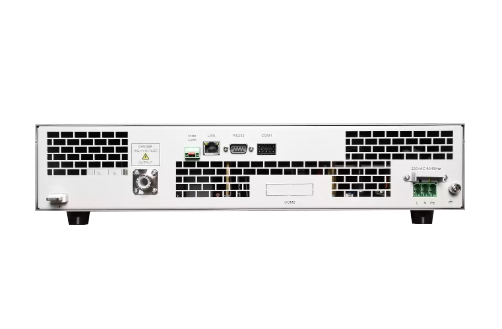

Standard interfaces include safety interlock/LAN/RS232/RS485/CAN, etc

Functions & Advantages

Wide range, one can be used as several

The N32100 series high-voltage DC power supplies feature a wide-range design, enabling a single unit to deliver a broader spectrum of voltage and current outputs at rated power. This meets engineers' diverse testing requirements across multiple voltage/current levels, significantly reducing power supply costs and space requirements in laboratories or automated test systems.

The N32125-10k-M300 power supply delivers 2500W output power, with maximum output voltage and current reaching 10kV and 300mA respectively. A single unit covers more applications, saving users costs.

undefined

Low Ripple Noise

Ripple is one of the core metrics for DC power supplies. Leveraging years of power supply R&D expertise, NGI has optimized component selection and adopted advanced switching power supply technology. This not only accelerates power supply output response but also effectively reduces output ripple noise, ensuring superior output power quality.
